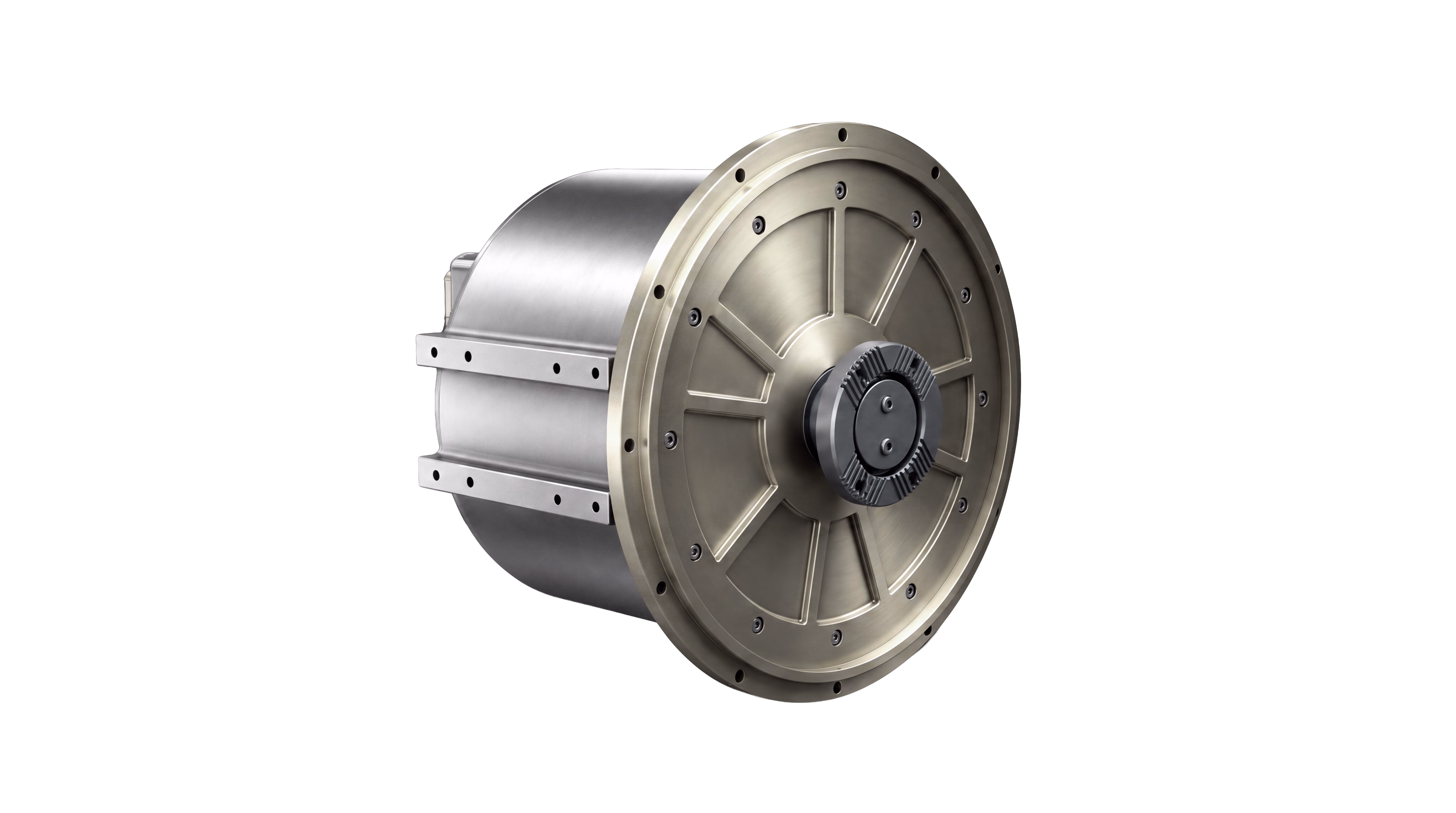

HDRM™ TITAN
Heavy-duty traction motor for buses, trucks and terminal tractors
HDRM™ Titan is rare earth magnet-free motor offering market-leading performance, efficiency and sustainability designed for heavy duty applications including trucks, buses, terminal tractors and large gensets. Using off-the-shelf power electronics, the HDRM™ Titan motor is a direct replacement for permanent magnet machines.
Product Range
HDRM™ TITAN
Peak Power700 kW
Continuous Power500 kW
Peak Torque5000 Nm
Continuous Torque3500 Nm
Maximum Speed4000 rpm
Weight200 Kg
CoolingWater / Glycol
Benefits
Dependable
Robust and maintenance-free with motors sealed for life
Sustainable
High torque, sustainable rare earth magnet-free design
Scalable
Ability to vary stack length to right-size performance for your application
About HDRM™ TITAN
The HDRM™ TITAN incorporate rare earth magnet-free motor technology for high efficiency over real-world duty cycles, giving class-leading power density and torque.
Features
Sustainable, magnet-free motor
Scalable design for a wide range of applications
Robust and maintenance-free with the motor sealed for life
Ingress Protection Level IP6K9K
Freewheeling capability allowing vehicle to coast when necessary
Inverter agnostic
No risk of demagnetization, allowing motors to run faster and hotter
